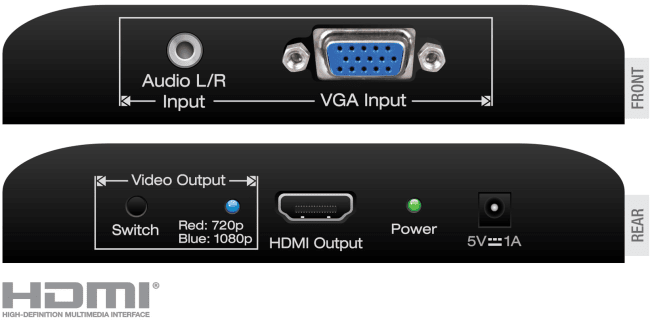

Key Digital - KD-VCS500, Converts and scales VGA video

Produktnummer: 10303777
Lagerbeholdning:

inkl. mva.

Converts and scales VGA video and analog audio to digital HDMI video and audio


  • Converts: VGA video and analog audio to digital HDMI video and audio
  • Embeds: Incoming analog audio onto the HDMI output
  • Up-scales: VGA resolutions to 720p or 1080p
  • Supports the following VGA resolutions: 640x480@60, 800x600@60, 1024x768@60, 1152x864@60Hz, 1280x720@60, 1280x768@60, 1280x800@60, 1280x960@60, 1360x768@60, 1366x768@60, 1280x960@60, 1280x1024@60, 1440x900@60/75, 1600x1050@60, 1680x1050@60, 1600x1200@60, 1920x1080@60, 1920x1200@60
  • Resolution Selection: Simple switching between 720p and 1080p up-scaling
    • Dual-color LED allows for easy identification of resolution mode
  • HDMI® and HDCP Licensing: Fully licensed and compatible with all HDMI and HDCP

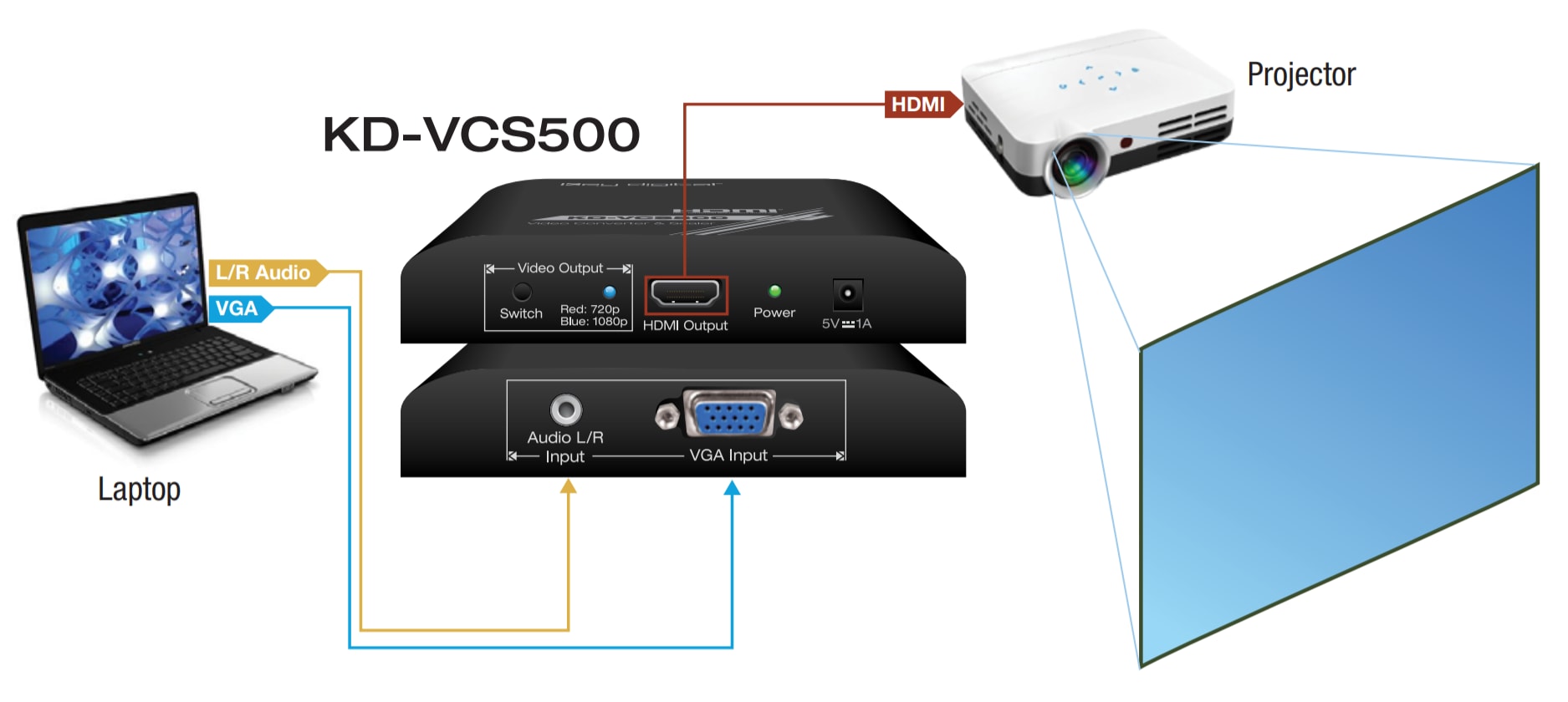

System design example
